Radiator & Components for 2009 Mazda 6

Diagram 1 1. Radiator Assembly Diagram 2 2. Radiator Diagram 3 3. Water Outlet 4. Engine Coolant Bypass Hose

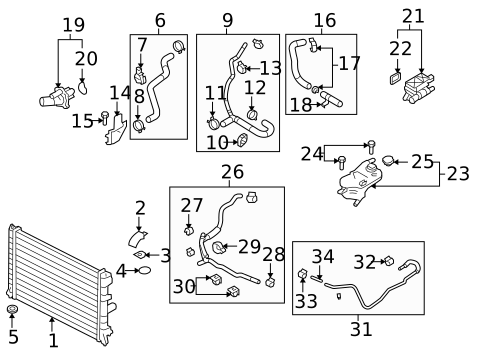

Radiator & Components for 2009 Mazda 6 #0
1
10
12
13
14
15
16
17
19
2
20
21
22
23
25
26
27
28
29
3
30
31
32
33
34
4
5
6
7
8
9
No.
Part # / Description / Price
Price
1
L51915200B - Cooling System: Radiator Assembly for Mazda Image
Radiator Assembly
L519-15-200B
Mazda Mazda
Description: Mazda6. 2.5L, 2009-2010, auto trans.
MSRP $562.70
$381.43
MSRP $562.70
$381.43
1
L51815200B - Cooling System: Radiator Assembly for Mazda Image
Radiator Assembly
L518-15-200B
Mazda Mazda
Description: Mazda6. 2.5L, 2009-2010, manual trans.
MSRP $562.70
$381.43
MSRP $562.70
$381.43
2
L51815241 - Cooling System: Upper Bracket for Mazda Image
Upper Bracket
L518-15-241
Mazda Mazda
Positions: Right
Description: 2.5L, 2011-13. 3.7L, 2011-13. 2.5L, 2009-2010. 3.7L, 2009-2010.
MSRP $11.54
$8.44
MSRP $11.54
$8.44
3
L51815242 - Cooling System: Upper Mount for Mazda Image
Upper Mount
L518-15-242
Mazda Mazda
Positions: Left
Description: Upper mount. 2.5L, 2011-13. 3.7L, 2011-13. 2.5L, 2009-2010. 3.7L, 2009-2010.
MSRP $11.35
$8.31
MSRP $11.35
$8.31
4
L51815252 - Cooling System: Upper Insulator for Mazda Image
Upper Insulator
L518-15-252
Mazda Mazda
Positions: Right
Description: Upper insulator. 2.5L, 2009-2010. 3.7L, 2009-2010.
MSRP $4.60
$3.37
MSRP $4.60
$3.37
5
B6DG15202A - Cooling System: Lower Insulator for Mazda Image
Radiator Insulator
B6DG-15-202A
Mazda Mazda
Positions: Right
Description: 2.5L non turbo. Auto trans, japan built. Auto trans, mexico built. 2.5L 2011-13. 2.0L, to 9/20/12. With turobcharger. 2.5L 2009-2010.
MSRP $20.58
$14.82
MSRP $20.58
$14.82
6
L5181518XF - Cooling System: Inlet Hose for Mazda Image
Radiator Coolant Hose
L518-15-18XF
Mazda Mazda
Description: 2.5L, 2009-2010. To 11/03/2008.
MSRP $41.41
$29.81
MSRP $41.41
$29.81
7
L51815580B - Cooling System: Inlet Hose Clip for Mazda Image
Radiator Coolant Hose Hold Down
L518-15-580B
Mazda Mazda
Notes: PARTS: Part included with inlet hose.
Description: 2.5L 2009-2010.
$5.75
$5.75
8
CA0715182A - Cooling System: Inlet Hose Clamp for Mazda Image
Radiator Hose Clamp
CA07-15-182A
Mazda Mazda
Notes: PARTS: Part included with inlet hose.
Description: 2.5L 2009-2010. 3.7L 2009-2010.
MSRP $7.07
$5.17
MSRP $7.07
$5.17
9
L5181520ZE - Cooling System: Outlet Hose for Mazda Image
Radiator Coolant Hose
L518-15-20ZE
Mazda Mazda
Description: Mazda6. 2.5L, 2009-2010. Radiator to Pipe.
MSRP $105.37
$73.32
MSRP $105.37
$73.32
10
CA0715547B - Cooling System: Outlet Hose Retainer for Mazda Image
Radiator Coolant Hose Hold Down
CA07-15-547B
Mazda Mazda
Notes: PARTS: Part included with outlet hose.
Description: 2.5L 2009-2010. Outlet hose,retainer. 3.7L 2009-2010.
MSRP $11.10
$8.13
MSRP $11.10
$8.13
13
L51815285A - Cooling System: Outlet Hose Holder for Mazda Image
Radiator Coolant Hose Hold Down
L518-15-285A
Mazda Mazda
Notes: PARTS: Part included with outlet hose.
Description: 2.5L 2009-2010. Outlet hose,holder. 3.7L 2009-2010.
MSRP $15.89
$11.63
MSRP $15.89
$11.63
14
L51815370B - Cooling System: Bracket for Mazda Image
Engine Coolant Reservoir Bracket
L518-15-370B
Mazda Mazda
Description: 2.5L 2011-13. 3.7L 2011-13. 2.5L 2009-2010. 3.7L 2009-2010.
MSRP $26.65
$19.19
MSRP $26.65
$19.19
15
994590616 - Cooling System: Bracket Bolt for Mazda Image
Upper Bracket Bolt
9945-90-616
Mazda Mazda
Description: Modules & sensors. Front. 2.5L 2011-13. 3.7L 2011-13. 2.5L 2009-2010. 3.7L 2009-2010.
MSRP $2.41
$1.77
MSRP $2.41
$1.77
15
9XF03924X7 - Belts & Cooling: Engine Coolant Reservoir Bolt for Mazda Image
Reservoir Bolt
9XF0-39-24X7
Mazda Mazda
Description: 3.7L, 2011-13. 2.5L, 2009-2010. 3.7L, 2009-2010.
MSRP $3.37
$2.46
MSRP $3.37
$2.46
16
L5181518YD - Cooling System: Rear Hose for Mazda Image
Radiator Coolant Hose
L518-15-18YD
Mazda Mazda
Description: Pipe To Thermostat Housing. Incl.Pipe. 2.5L, 2009-2010.
MSRP $42.75
$30.77
MSRP $42.75
$30.77
17
L51915182A - Cooling System: Rear Hose Clamp for Mazda Image
Radiator Hose Clamp
L519-15-182A
Mazda Mazda
Notes: PARTS: Part included with rear hose.
Description: 2.5L, 2009-2010.
$7.19
$7.19
19
L33615170 - Cooling System: Thermostat Unit for Mazda Image
Engine Coolant Thermostat Kit
L336-15-170
Mazda Mazda
MSRP $25.86
$18.61
MSRP $25.86
$18.61
20
LF0315165A - Cooling System: Thermostat Unit Gasket for Mazda Image
Engine Coolant Thermostat Housing Gasket
LF03-15-165A
Mazda Mazda
Notes: PARTS: Part included with thermostat unit.
MSRP $8.01
$5.87
MSRP $8.01
$5.87
21
LFD91517Z - Cooling System: Water Outlet for Mazda Image
Water Outlet
LFD9-15-17Z
Mazda Mazda
Description: 2.5L, 2009-2010. Mazda6. Chihuahua plant.
MSRP $58.19
$41.19
MSRP $58.19
$41.19
22
LF1F15169 - Cooling System: Water Outlet Seal for Mazda Image
Engine Coolant Outlet Gasket
LF1F-15-169
Mazda Mazda
Notes: PARTS: Part included with water outlet.
Description: Outlet Flange. Without mazdaspeed. 2.0L without skyactiv. 2.5L, 2011-13. 2.5L, 2009-2010.
MSRP $8.99
$6.58
MSRP $8.99
$6.58
23
L51815350A - Cooling System: Reservoir for Mazda Image
Engine Coolant Reservoir
L518-15-350A
Mazda Mazda
Description: Mazda6. 3.7L, 2011-13. 2.5L, 2009-2010. 3.7L, 2009-2010.
MSRP $42.63
$30.68
MSRP $42.63
$30.68
25
AJ5715205 - Cooling System: Reservoir Cap for Mazda Image
Cap
AJ57-15-205
Mazda Mazda
Notes: PARTS: Part included with reservoir.
Description: Location-Reservoir. 3.0L. Expansion tank cap. Mazda6. 3.7L, 2011-13. 2.5L, 2009-2010. 3.7L, 2009-2010.
MSRP $17.88
$13.09
MSRP $17.88
$13.09
26
L5181538XE - Cooling System: Reservoir Hose for Mazda Image
Engine Coolant Overflow Hose
L518-15-38XE
Mazda Mazda
Description: 2.5L, 2009-2010. 3.7L, 2009-2010.
MSRP $35.51
$25.56
MSRP $35.51
$25.56
27
L52015182A - Cooling System: Reservoir Hose Clamp for Mazda Image
Reservoir Hose Clamp
L520-15-182A
Mazda Mazda
Notes: PARTS: Part included with reservoir hose.
Description: 2.5L, 2009-2010, #1. 3.7L, 2009-2010, #1.
MSRP $6.97
$5.10
MSRP $6.97
$5.10
28
CA1015182A - Cooling System: Reservoir Hose Clamp for Mazda Image
Engine Coolant Reservoir Hose Clamp
CA10-15-182A
Mazda Mazda
Notes: PARTS: Part included with reservoir hose.
Description: 2.5L, 2009-2010, #2. 3.7L, 2009-2010, #2. 3.7L, 2009-2010, #1.
MSRP $6.90
$5.05
MSRP $6.90
$5.05
29
ZJ3820821A - Cooling System: Reservoir Hose Clip for Mazda Image
Engine Coolant Overflow Hose Clip
ZJ38-20-821A
Mazda Mazda
Notes: PARTS: Part included with reservoir hose.
Description: Reservoir hose,clip. 3.7L, 2011-13. 2.5L, 2009-2010. 3.7L, 2009-2010.
MSRP $7.20
$5.27
MSRP $7.20
$5.27
30
CY0115547 - Cooling System: Reservoir Hose Retainer Clip for Mazda Image
Engine Coolant Overflow Hose Clip
CY01-15-547
Mazda Mazda
Notes: PARTS: Part included with reservoir hose.
Description: Reservoir hose,retainer clip. 3.7L, 2011-13. 2.5L, 2009-2010. 3.7L, 2009-2010.
MSRP $8.54
$6.25
MSRP $8.54
$6.25
31
L51815380D - Cooling System: Return Hose for Mazda Image
Return Hose
L518-15-380D
Mazda Mazda
Description: 2.5L, 2009-2010.
MSRP $38.12
$27.44
MSRP $38.12
$27.44
31
L5181518XG - Belts & Cooling: Radiator Coolant Hose for Mazda Image
Radiator Coolant Hose
L518-15-18XG
Mazda Mazda
Positions: Upper
Description: Mazda6. 2.5L, 2009-2010. From 11/03/2008.
MSRP $47.71
$34.34
MSRP $47.71
$34.34
32
L52115182A - Cooling System: Return Hose Clamp for Mazda Image
Radiator Hose Clamp
L521-15-182A
Mazda Mazda
Notes: PARTS: Part included with Return hose.
Description: 2.5L, 2009-2010, #1.
MSRP $6.13
$4.49
MSRP $6.13
$4.49
34
CA0715380E - Cooling System: Return Hose Connector for Mazda Image
Radiator Coolant Hose Adapter
CA07-15-380E
Mazda Mazda
Notes: PARTS: Part included with Return hose.
Description: 3.7L, 2009-2010. 2.5L, 2009-2010.
MSRP $50.42
$35.70
MSRP $50.42
$35.70
